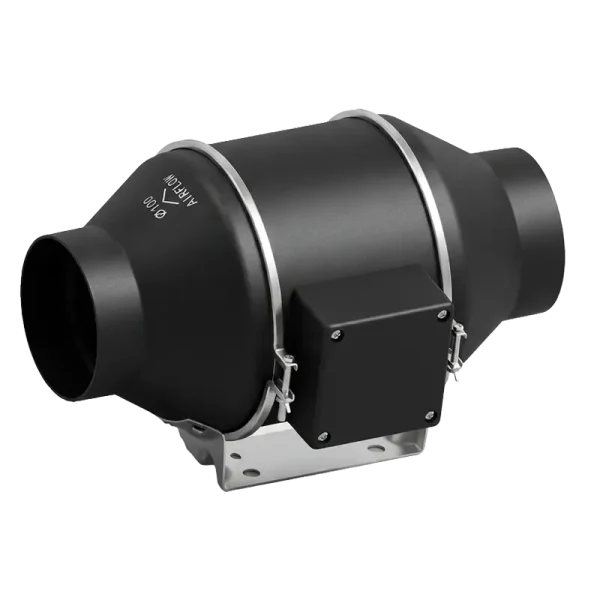

The EC Motor Inline Ventilation Duct Fan provides high-volume airflow and precise climate regulation for indoor grow tents, hydroponic gardens, and residential/commercial HVAC systems. Powered by a three-phase PWM EC motor, it delivers robust airflow while remaining highly energy-efficient and quiet.
Designed for maximum flexibility, this series comes in three duct sizes—4″, 6″, and 8″—and can be paired with three distinct control systems, ranging from manual stepless dimming to advanced Smart WiFi App integration with real-time temperature and humidity triggers.

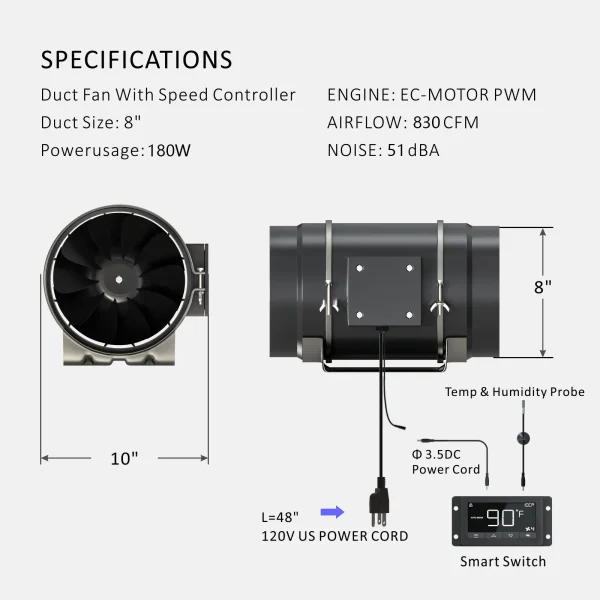

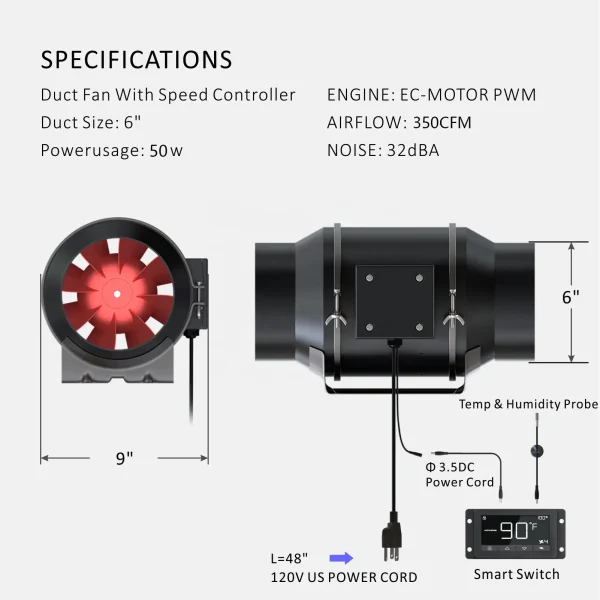

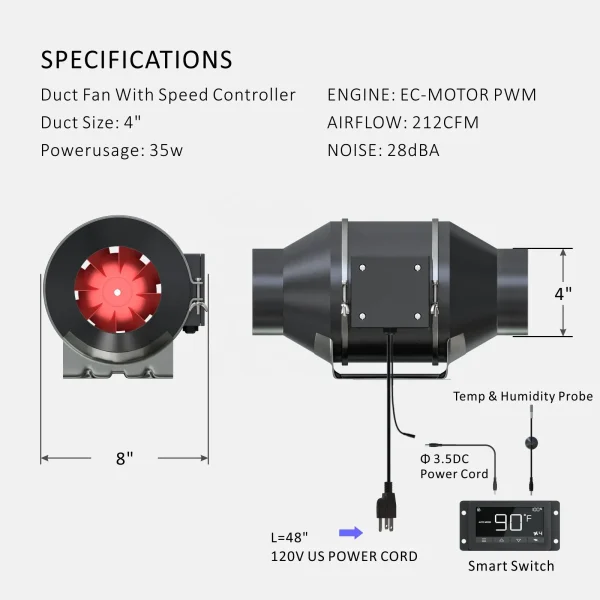

Technical Specifications
Parameter
4 Inch Fan
6 Inch Fan
8 Inch Fan
Duct Collar Diameter
98 mm (4″)
147 mm (6″)
198 mm (8″)
Motor Type
Three-Phase PWM EC Motor
Three-Phase PWM EC Motor
Three-Phase PWM EC Motor
Rated Voltage
110–240V AC, 50/60Hz
110–240V AC, 50/60Hz
110–240V AC, 50/60Hz
Power Consumption
30 Watts
60 Watts
70 Watts / 180 Watts
Airflow Volume
212 – 214 CFM
402 – 405 CFM
553 CFM / 831 CFM
Max Speed
3000 RPM
3000 RPM
3000 RPM
Max Noise Level
27–28 dBA
31–32 dBA
50–51 dBA
Power Cable Length
1.5 Meters
1.5 Meters
1.5 Meters
Control Cable Length
2.5 Meters
2.5 Meters
2.5 Meters
Controller Options

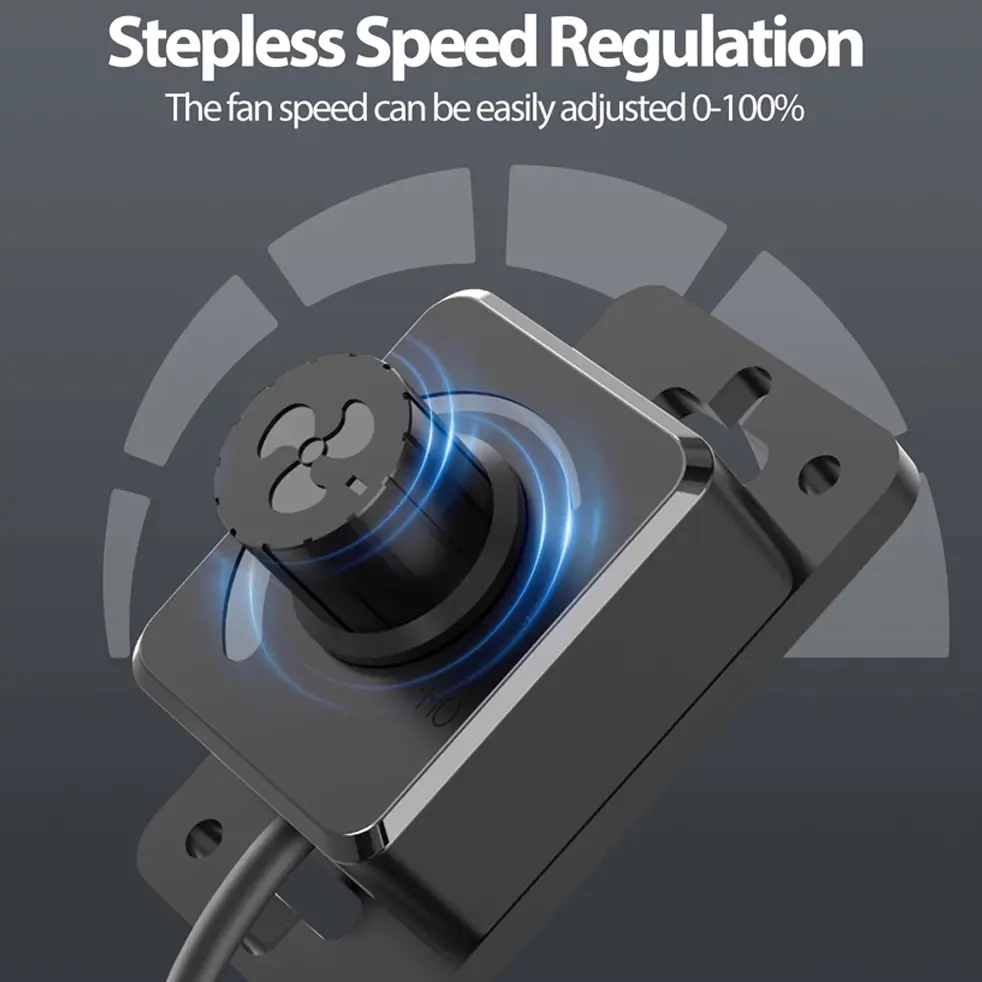

Option A: Stepless Knob Controller
Manual 0–100% continuous variable speed adjustment via external rotary knob.

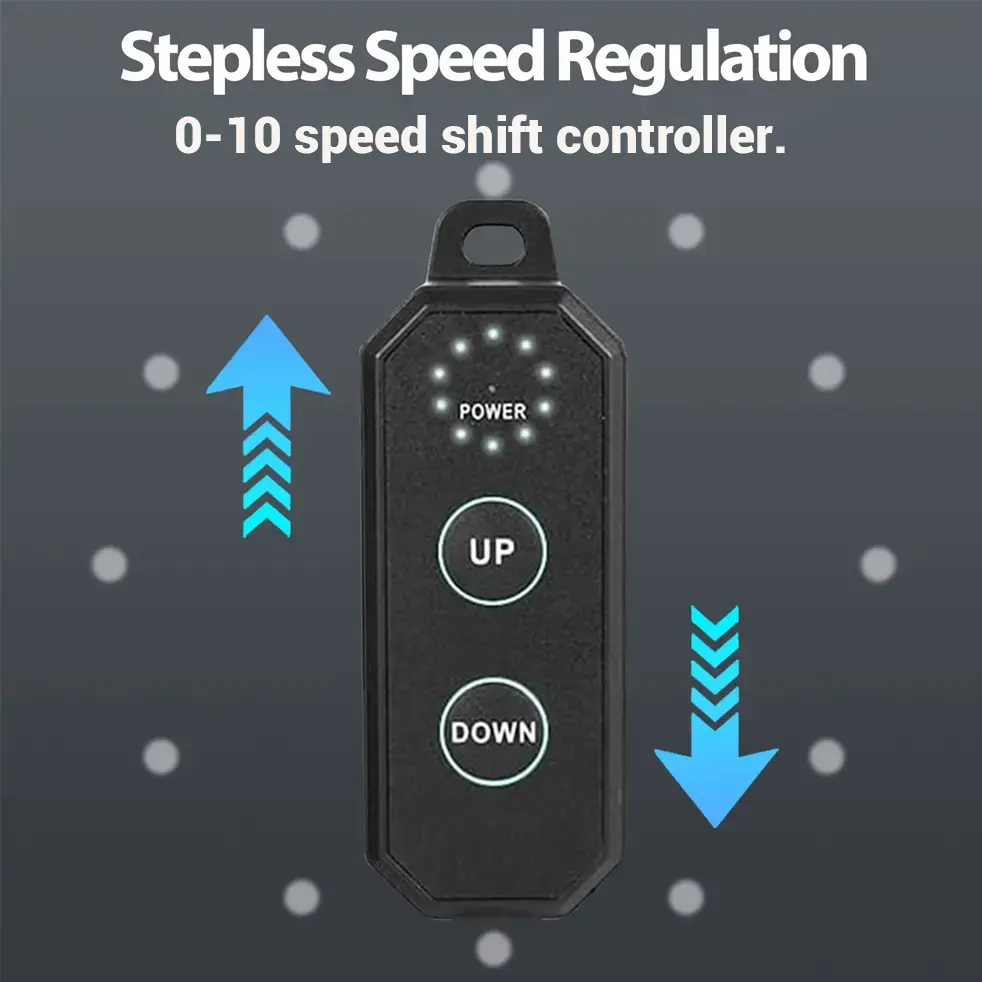

Option B: 10-Speed Electronic Controller
Digital push-button regulation with 10 discrete speed steps for precise airflow tuning.

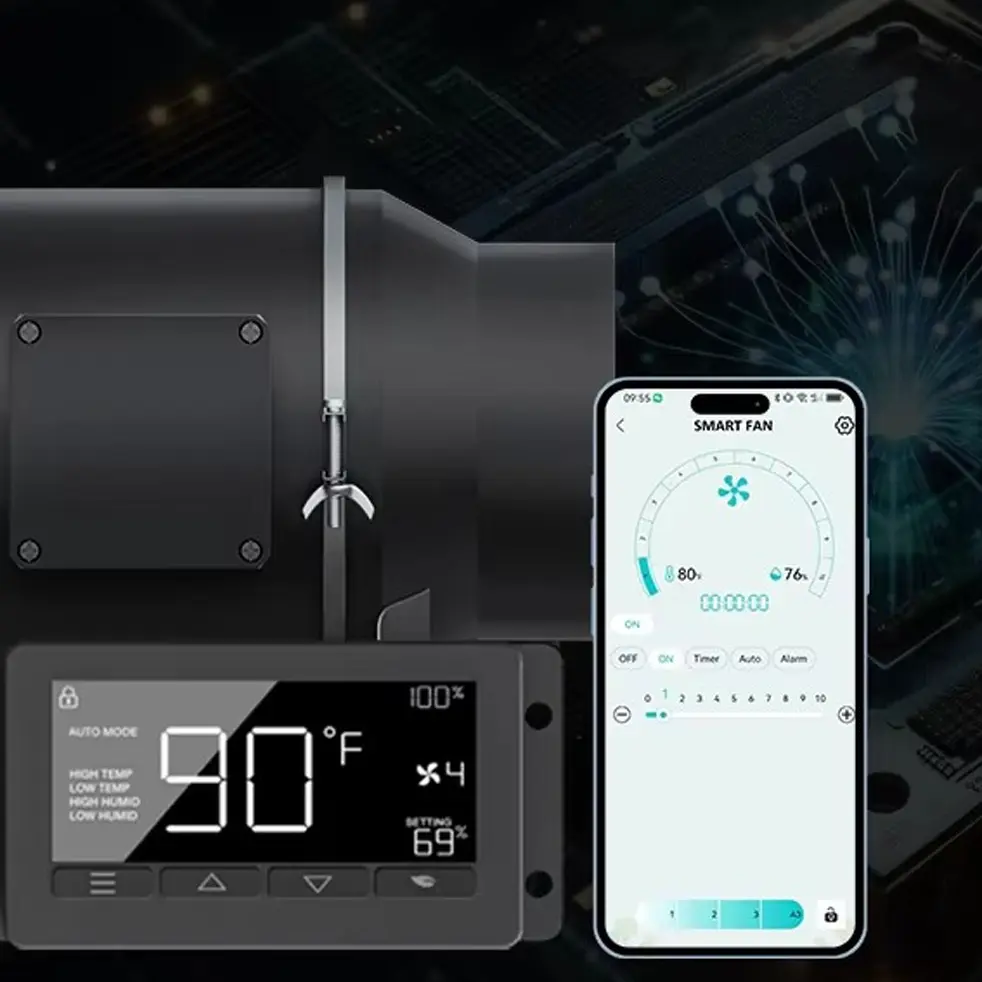

Option C: Smart WiFi App Controller
Advanced environmental controller with built-in temperature & humidity sensors. Features automated programming, timer scheduling, alarm alerts, and remote smartphone app management.
Key Features & Advantages
PWM EC Motor Performance Consumes up to 50% less energy than standard AC duct fans while producing higher static air pressure and lower heat dissipation.
Acoustic Noise Reduction Engineered with mixed-flow impellers and stator vanes to deliver maximum airflow velocity at ultralow sound levels (<35 dBA for 4″/6″ models).
Versatile Control Ecosystem Seamlessly switch between manual knobs and smart IoT climate controllers via standard 2.5m quick-connect signal wiring.
Durable & Compact Housing Built for easy inline installation into rigid or flexible ducting systems with minimal vibration.
Applications
Indoor Agriculture & Grow Tents: Exhausting heat, humidity, and odor; supplying fresh intake air for cannabis and horticulture.
Residential Ventilation: Improving air turnover in basements, attics, workshops, and bathrooms.
Commercial HVAC Systems: Boosting airflow in long duct runs, server rooms, and storage areas.
OEM Support
Customization (OEM/ODM): Private labeling, custom branding, customized packaging, and market-specific power plugs (US, EU, UK, AU).
