Name: 120W Two-Sided LED Under Canopy Grow Light, IP66
Brand: Weltech
SKU: WTGL012005

120W Two-Sided LED Under Canopy Grow Light, IP66

Product code: WTGL012005
Model: WT120-2S — two-sided LED under canopy light
Power: 120 W ±5% · PPE 2.9 / 3.1 µmol/J · PPF 348 / 372 µmol/s
Spectrum: Sun White Pro — white 3030 + red 3535 660 nm
120–277 V (277–480 V option) · 0–10 V flicker-free dimming · PF > 0.95
IP66 sealed aluminium body · 1150 × 85 × 105 mm · 3.0 kg
Daisy-chain up to 30 fixtures · L90 > 50,000 h · CE / ETL / DLC / RoHS

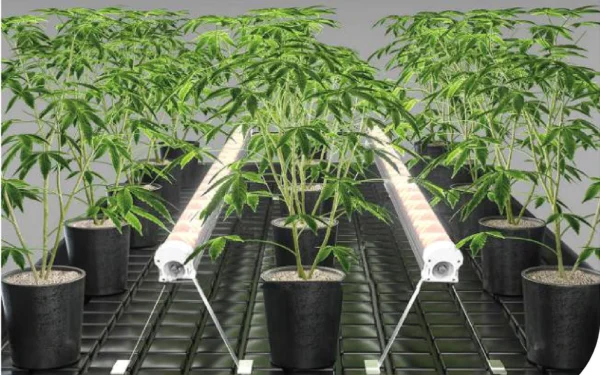

The WT120-2S is a 120 W two-sided LED under-canopy light that hangs inside the crop row and lights the underside of the canopy — the leaf area a top light never reaches. Both faces of the fixture emit, so shaded lower leaves keep photosynthesising and the canopy stays uniform from top to bottom.

Key features

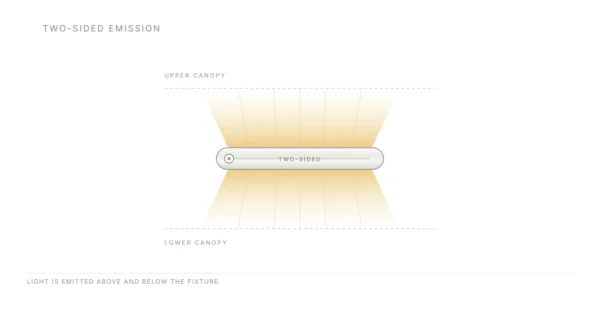

Two-sided emission: a mirror optical surface on each face lights upper and lower leaf surfaces from one 1150 mm body
2.9 or 3.1 µmol/J, 348 or 372 µmol/s — white 3030 diodes plus 660 nm red 3535

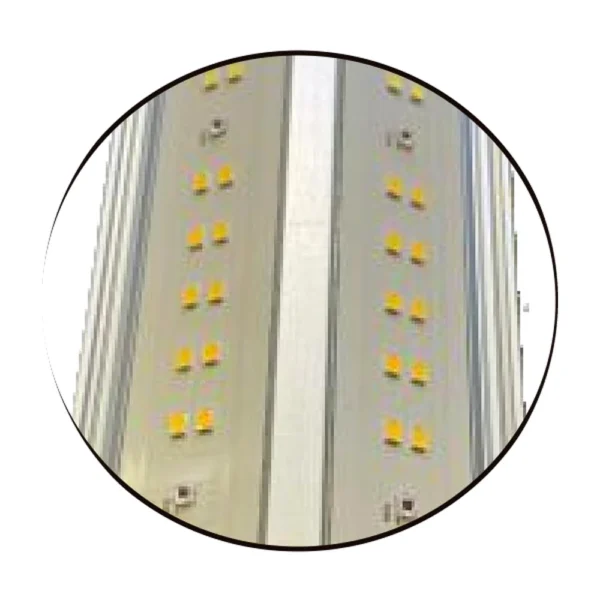

Bubbled high-transmission lens spreads light evenly and drives it deeper into the canopy without hot spots
IP66 sealed aluminium body with twin heat sinks — built for IPM sprays, irrigation splash and wash-down
0–10 V flicker-free dimming, PF > 0.95, Sosen constant-current driver

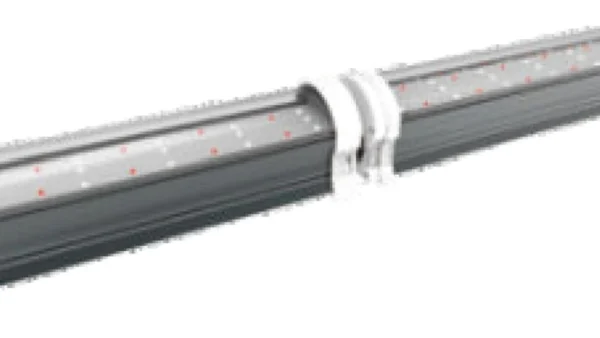

Daisy-chain up to 30 fixtures with 0.9 m jumpers and a single power feed

Specifications

Parameter	Specification
Light engine	Two-sided LED, integrated driver
Rated power	120 W (±5%)
PPF	348 µmol/s · 372 µmol/s
PPE	2.9 µmol/J · 3.1 µmol/J

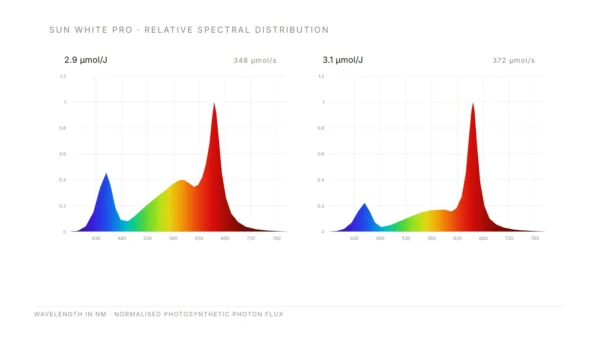

Spectrum	Sun White Pro — white 3030 + red 3535 (660 nm)
Input voltage	120–277 V AC, 50/60 Hz (277–480 V option)
Dimming	0–10 V, flicker-free
Power factor	> 0.95
Driver	Sosen constant-current driver
Ingress protection	IP66

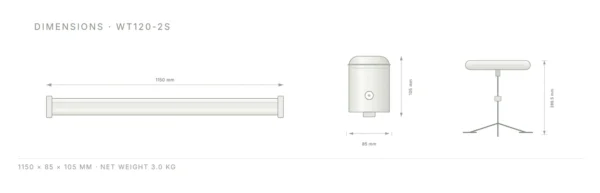

Dimensions	1150 × 85 × 105 mm
Net weight	3.0 kg
Lifetime	L90 > 50,000 h
Daisy-chain	Up to 30 fixtures (120 V: 7 · 240 V: 15 · 277 V: 17 · 347 V: 20 · 480 V: 30)
Packaging	4 pcs per carton, 1185 × 208 × 205 mm
Certification	CE · ETL/cETL · DLC · RoHS

Applications

In-row under-canopy lighting for indoor flowering rooms
Greenhouse and vertical-farm supplemental lighting
Propagation and mother rooms where lower-leaf light matters

Customisation & packing

OEM/ODM: housing colour, logo, spectrum version (2.9 or 3.1 µmol/J), cable length and retail packaging
277–480 V input and RJ14 dimming leads for your controller
Export carton with EPE foam, 4 pcs per carton; mixed-container loading available

Product code: WTGL012005

Product datasheetWT-DS-4101 · 2 pages · PDF · print allowed, copy/edit restricted

Download PDF

Can’t open the file? Open in a new tab or request a copy at [email protected].
