High Commercial Output: Delivers high photon flux of 2,240 umol/s with a photosynthetic efficacy of 2.8 umol/J (fixture luminous efficiency up to 160-170 lm/W).
Industrial SOSEN UL Driver: Powered by an industrial-grade SOSEN UL-listed constant current driver operating reliably on wide-range 100-277V AC grids (50/60 Hz, PF > 0.95).

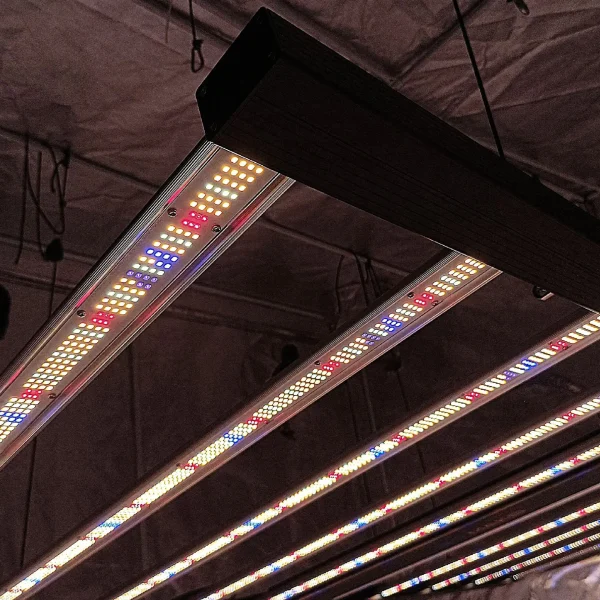

Premium Samsung & Deep Red Diodes: High-density diode array combining Samsung white spectrum and 660nm deep plant red for heavy flowering and resin production.
180-Degree Heavy-Duty Foldable Design: 8-bar aircraft-grade aluminum chassis folds 180 degrees for lower logistics volume, safe transit, and rapid single-tier or multi-tier deployment.
Dual Control & Daisy-Chain Network: Built-in manual rotary dimmer knob plus dual RJ12 ports supporting 0-10V / PWM master controllers for commercial multi-room synchronization.
Commercial Durability & ETL Standards: IP54 moisture-sealed construction rated for high-humidity greenhouse environments, backed by a 50,000-hour operational life and 3-5 year factory warranty.

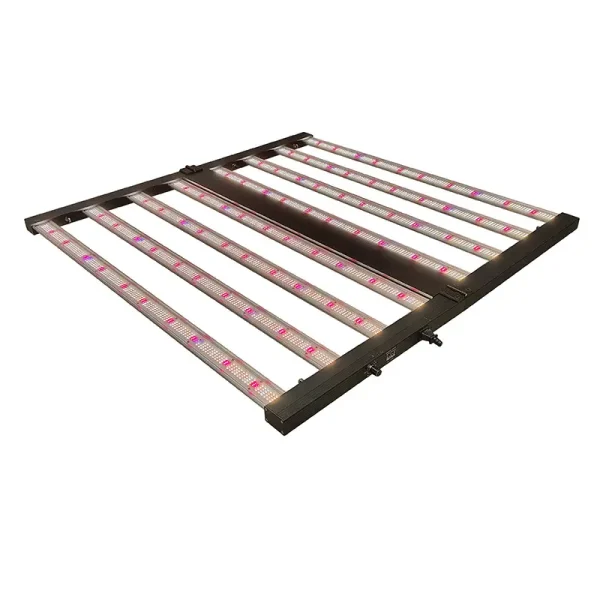

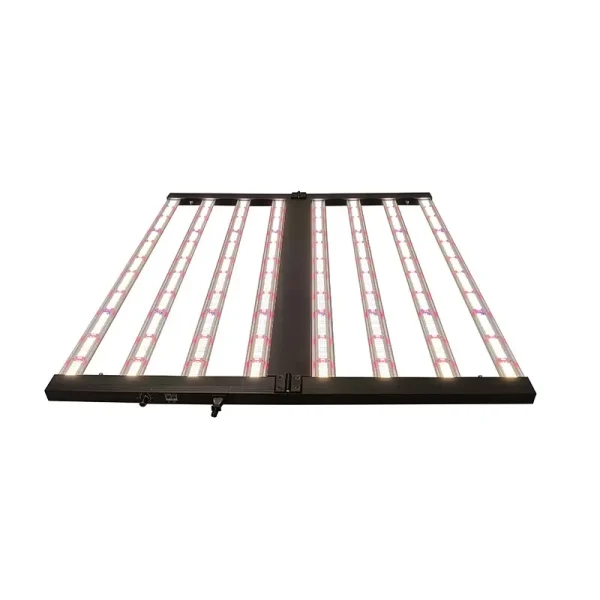

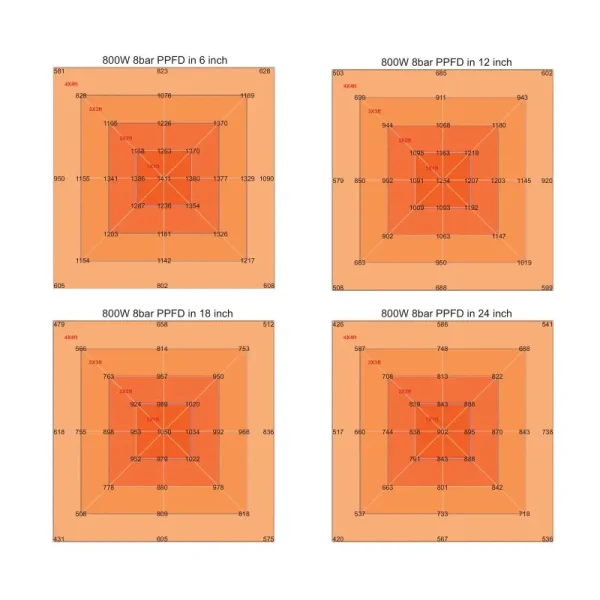

The 800W/840W-F series is an industrial-tier, 8-bar foldable LED grow fixture designed for high-density vertical racking, commercial greenhouse supplemental lighting, and expansive 5×5 ft to 6×6 ft canopy cultivation. Driven by high-efficiency SOSEN UL-certified drivers and premium Samsung / Epistar diode configurations, this fixture produces 2,240 umol/s of balanced photosynthetic light at 2.8 umol/J efficacy. Its large 1790 x 1085 mm footprint ensures edge-to-edge PPFD uniformity, eliminating center hot spots while penetrating dense lower leaf canopies.
Wide-Footprint 8-Bar Layout: The 1.79 m x 1.08 m unfolded footprint provides broad light dispersion across large canopy areas, preventing photon burn directly under the fixture center.
Heavy-Duty 180-Degree Center Hinge: Industrial-grade folding hinge allows the massive 8-bar frame to collapse in half for simplified transport, handling, and storage.

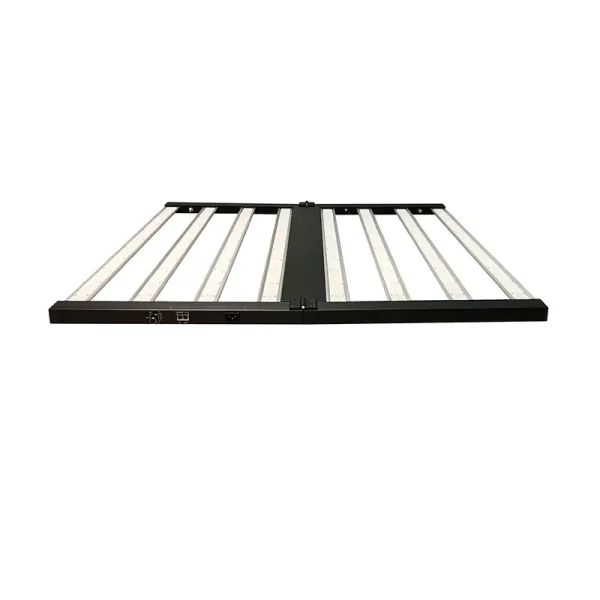

Side-Rail Control Center: The side profile integrates the AC power receptacle, manual dimming knob, and RJ12 in/out ports for convenient wiring access during installation.
High-Voltage Commercial Stability: Compatible with both residential 120V/240V circuits and commercial 277V three-phase sub-panels commonly found in large-scale indoor facilities.
