720W Foldable 6-Bar Full Spectrum LED Grow Light Fixture with 660nm Deep Red (1764 μmol/s, 0-10V & RJ12 Dimmable, 5×5 ft Coverage)
High-Efficiency Photon Output: Delivers 1,764 μmol/s PPF with an energy efficiency of 2.45 μmol/J (up to 160 lm/W fixture luminous efficacy) for commercial-grade yields.
Full Spectrum with 660nm Deep Red: Engineered with 2,088 high-output LEDs (348 diodes/bar) combining broad-spectrum white and 660nm plant red light to accelerate vegetative growth and maximize flower density.
180° Foldable Compact Architecture: 6-bar aluminum frame folds flat to 180 degrees, reducing shipping volume by over 50% and enabling quick, single-person installation.
Dual Dimming & Master Controller Support: Features 0–10V manual knob dimming alongside dual RJ12 ports for smart multi-light daisy-chaining and environmental controller integration.
Robust Commercial Build: IP54 moisture- and dust-resistant design with a 2-meter heavy-duty power cord, ETL/CE certified driver, and a rated lifespan exceeding 50,000 hours.

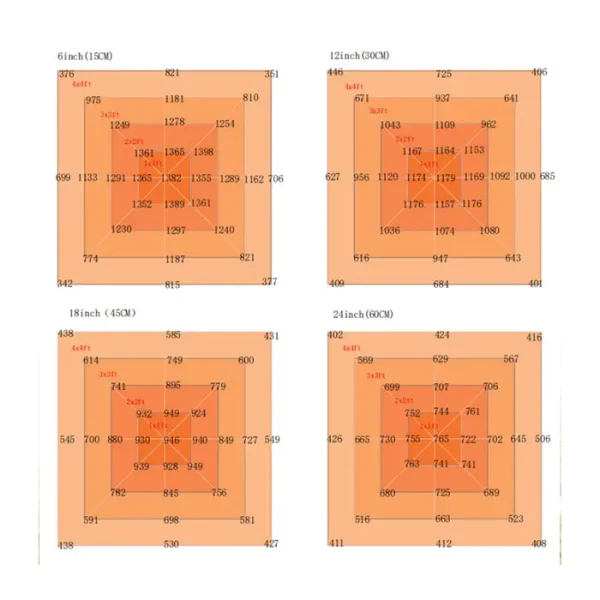

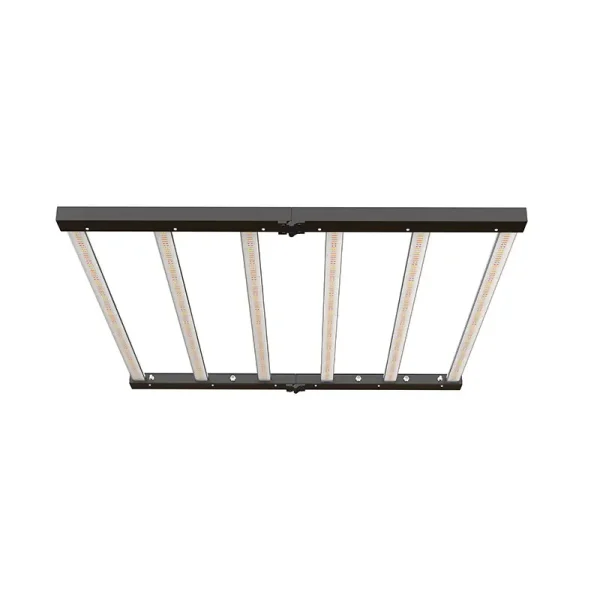

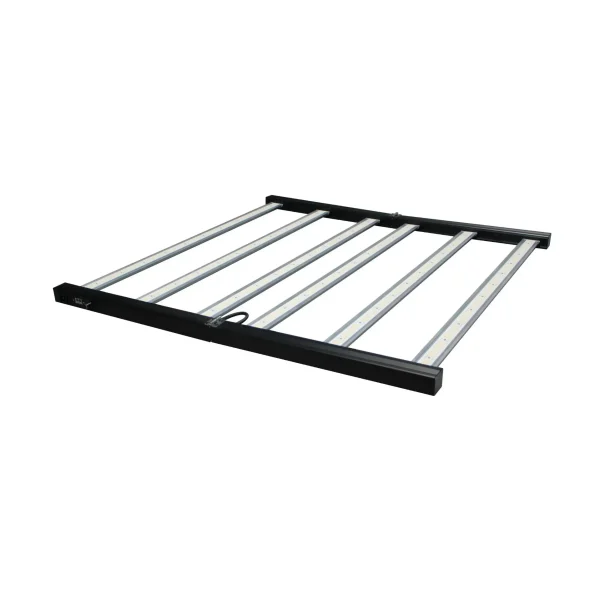

The GDG-720W-F-02 is a high-performance, 180-degree foldable 6-bar LED grow fixture engineered for indoor cultivation facilities, multi-tier vertical farming racks, and $5 \times 5\ \text{ft}$ grow tents. Powered by a high-efficiency driver (198–264V AC) and an array of 2,088 precision-placed diodes (Epistar 2835 full-spectrum white and 660nm deep red), it delivers a uniform photon flux of 1,764 μmol/s across a broad $120^\circ$ beam angle. The slim, foldable form factor minimizes shipping costs and storage footprint while providing commercial growers with plug-and-play setup, daisy-chain controllability, and long-term operating reliability.
IP54 (Moisture & Dust Resistant for Indoor Cultivation)
Thermal Performance (Temp Rise)
Fanless Passive Cooling / $\Delta T \le 45\text{K}$
Operating / Storage Temperature
$-37^\circ\text{C to }+55^\circ\text{C}$ / $-40^\circ\text{C to }+80^\circ\text{C}$
Operating Humidity
$< 95\%\ \text{RH}$
Certifications & Compliance
North American ETL Standards / CE Certified Driver
Operational Lifespan
$> 50,000\ \text{Hours}$ ($L_{90}$)
Key Structural & Optical Features

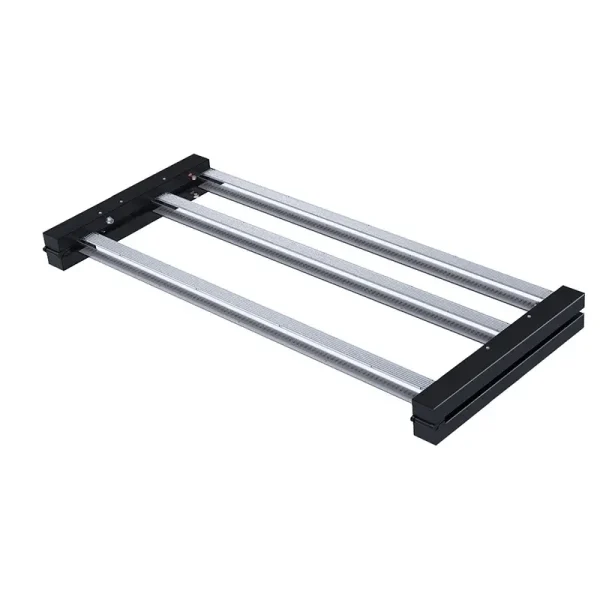

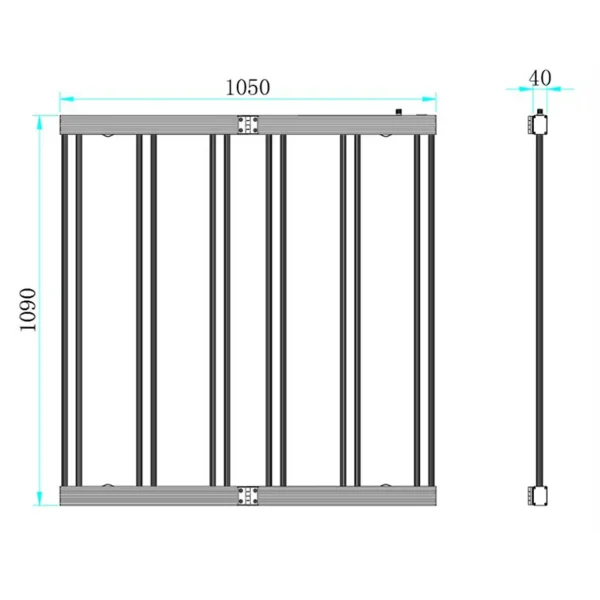

180° Foldable Lightweight Structure: The central hinge allows the fixture to fold flat $180^\circ$, cutting outer carton size down to just 10.5 cm in width for significant ocean and air freight savings.
Balanced Full-Spectrum Recipe: Enriched 660nm deep red wavelengths stimulate chlorophyll $a$ and $b$ absorption during flowering, while high-CRI white light ensures deep canopy penetration and healthy vegetative stem structure.
Intelligent Centralized Control: Built-in dual RJ12 ports enable growers to daisy-chain up to 100+ fixtures to a single master lighting controller for synchronized sunrise/sunset simulation, timing, and group dimming.
Fanless Silent Heat Dissipation: Engineered with 6 individual pure aluminum heat sink bars that rapidly conduct heat away from the diodes without noisy cooling fans or moving components.
