1000W 1.8m 10-Bar Foldable Full Spectrum Horticultural LED Grow Light with IR 730nm & 450nm Blue (2800 umol/s, 2.8 umol/J, 100-277V, IP65, ETL Certified)
High Photon Output: 2800 umol/s PPF and 2.8 umol/J efficacy (1000W +/- 5%).
Targeted Plant Spectrum: 3000K + 5000K white, 660nm deep red, 730nm IR, and 450nm blue.
Large 1.8m Footprint: 10-bar wide layout (1800 x 1100 mm) covering 4 x 6 ft max (3 x 5 ft core).
Smart Multi-Control: 2-channel dimming, Bluetooth App, smart remote, and RJ12 daisy-chaining.
Robust Horticultural Design: IP65 waterproof rating, 0 dB silent fanless cooling, and Delta T <= 30K.

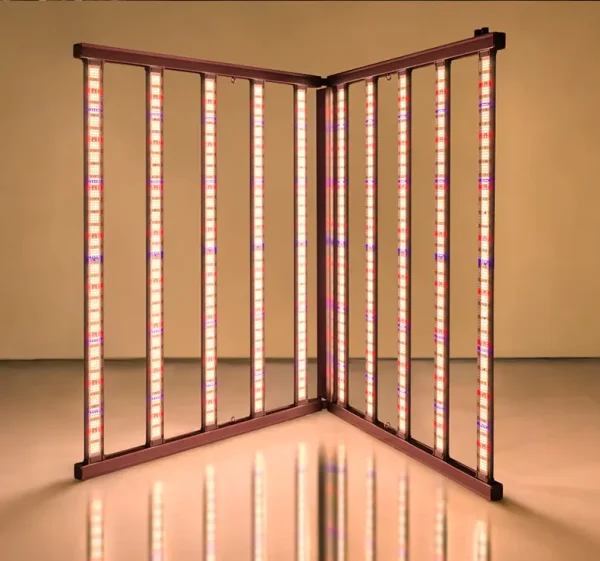

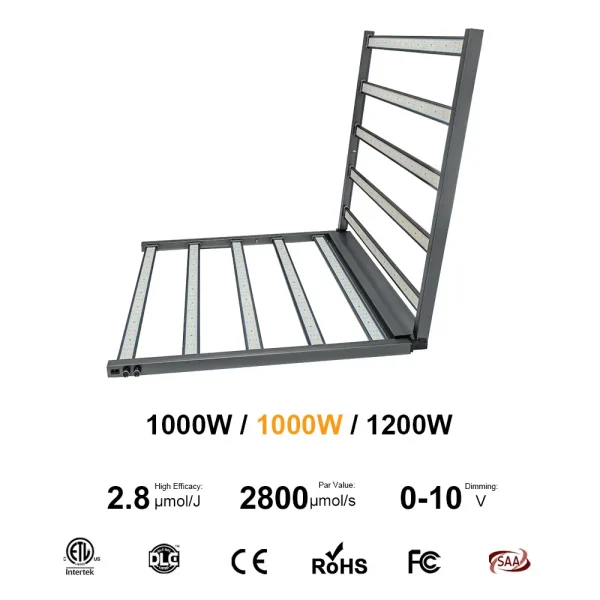

This 1000W 1.8-meter 10-bar foldable LED grow light is engineered for full-cycle plant cultivation, vertical farming racks, and greenhouse supplemental lighting. Equipped with high-performance Samsung, Sanan, and Osram diodes across 10 wide aluminum bars, it delivers 2800 umol/s of uniform photosynthetic light. The spectrum integrates 3000K and 5000K white light with 660nm deep red, 730nm far-red (IR), and 450nm blue to optimize plant vegetative growth, canopy structure, and flowering density. Its 180-degre e folding architecture provides easy handling and compact storage, while IP65 waterproofing protects the fixture against high- humidity cultivation environments.
Technical Specifications
Parameter / Specification
Value / Technical Detail
Rated Power Consumption
1000W (+/- 5%)
Light Bar Count
10 Heavy-Duty Extruded Aluminum Bars
Input Voltage Range
100-277V AC, 50/60Hz
Operating Current
8.33A @ 120V / 4.17A @ 240V / 3.61A @ 277V
Power Factor (PF)
0.98
Photosynthetic Photon Flux (PPF)
2800 umol/s
Photon Efficacy (EFF)
2.8 umol/J
LED Chip Selection
Samsung / Sanan / Osram (3696 – 5300 pcs)
Spectrum / CCT
3000K + 5000K + 660nm Red + 730nm IR + 450nm Blue
Coverage Area
Max Coverage: 4 x 6 ft (1.2 x 1.8 m) / Core Coverage: 3 x 5 ft (0.9 x 1.5 m)
Dimming & Control System
2-Channel Dimming, Bluetooth App, Smart Remote, RJ12 Daisy-Chain
Noise Level
0 dB (Fanless Passive Cooling)
Thermal Performance (Temp Rise)
Delta T <= 30 K
Ingress Protection Rating
IP65 (Waterproof and Dustproof for Grow Rooms)
Product Dimensions (L x W x H)
1800 x 1100 x 55-62 mm (70.9 x 43.3 x 2.4 in)
Product Weight
14.2 kg (Net Weight) / 20.0 kg (Gross Weight)
Operating Temperature
-37 deg C to +55 deg C

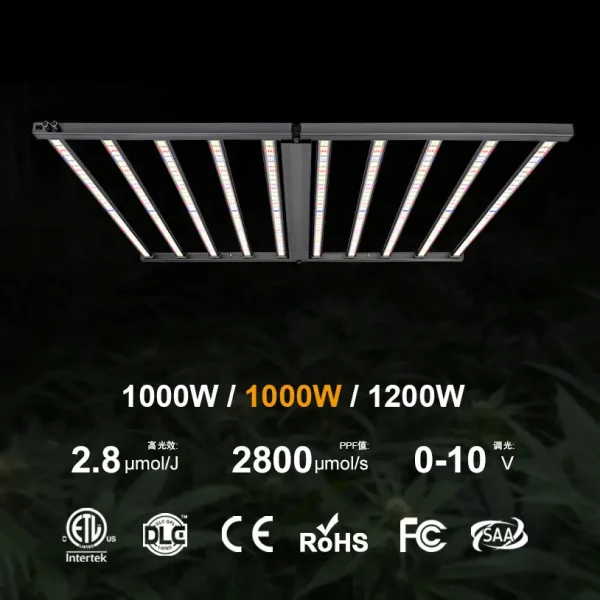

Certifications & Compliance
North American ETL Standards, CE, RoHS
Operational Lifespan & Warranty
> 50,000 Hours / 3 – 5 Years Limited Warranty

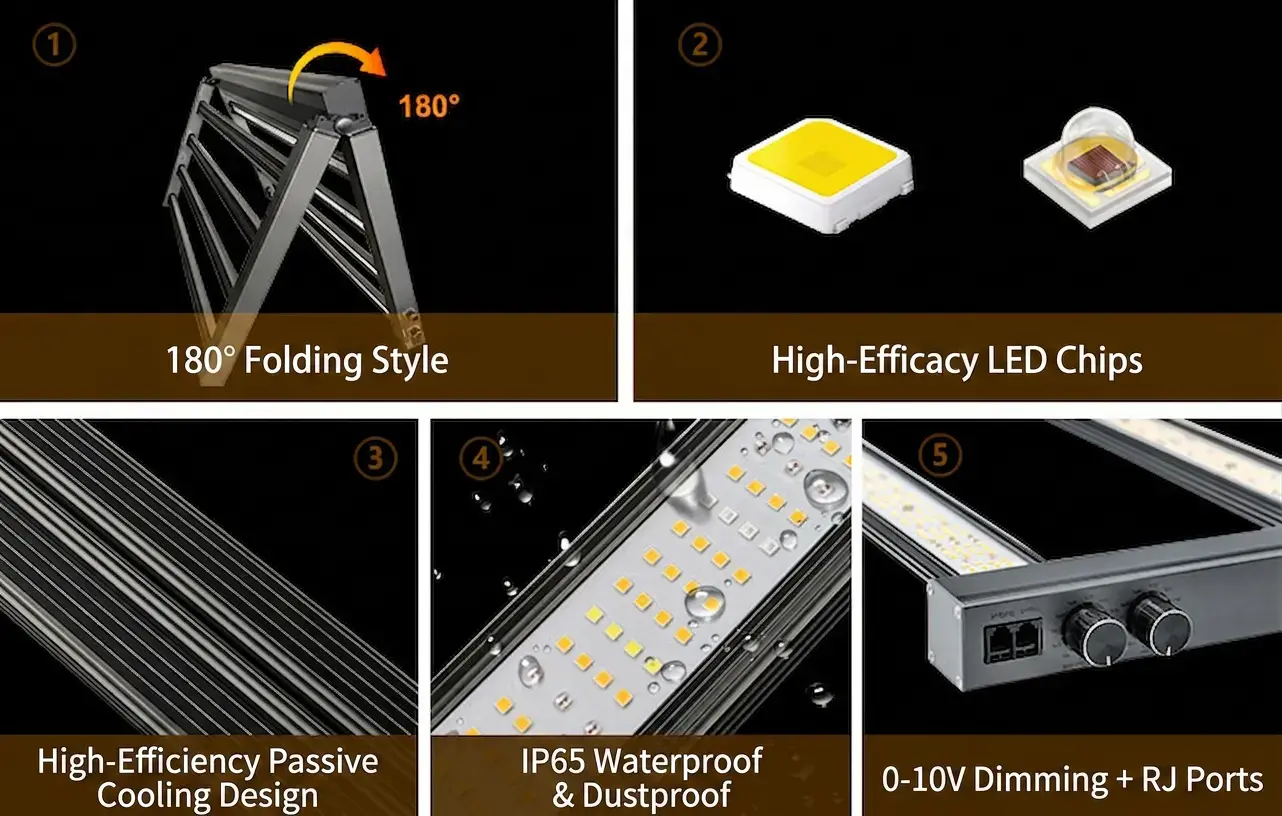

Key Structural & Optical Features

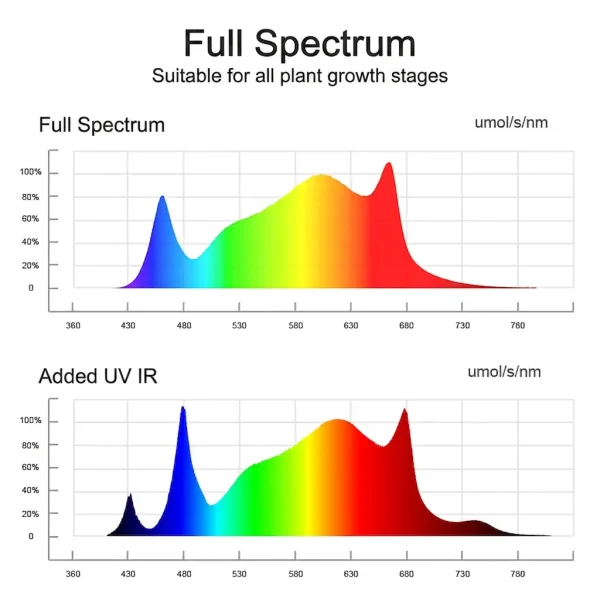

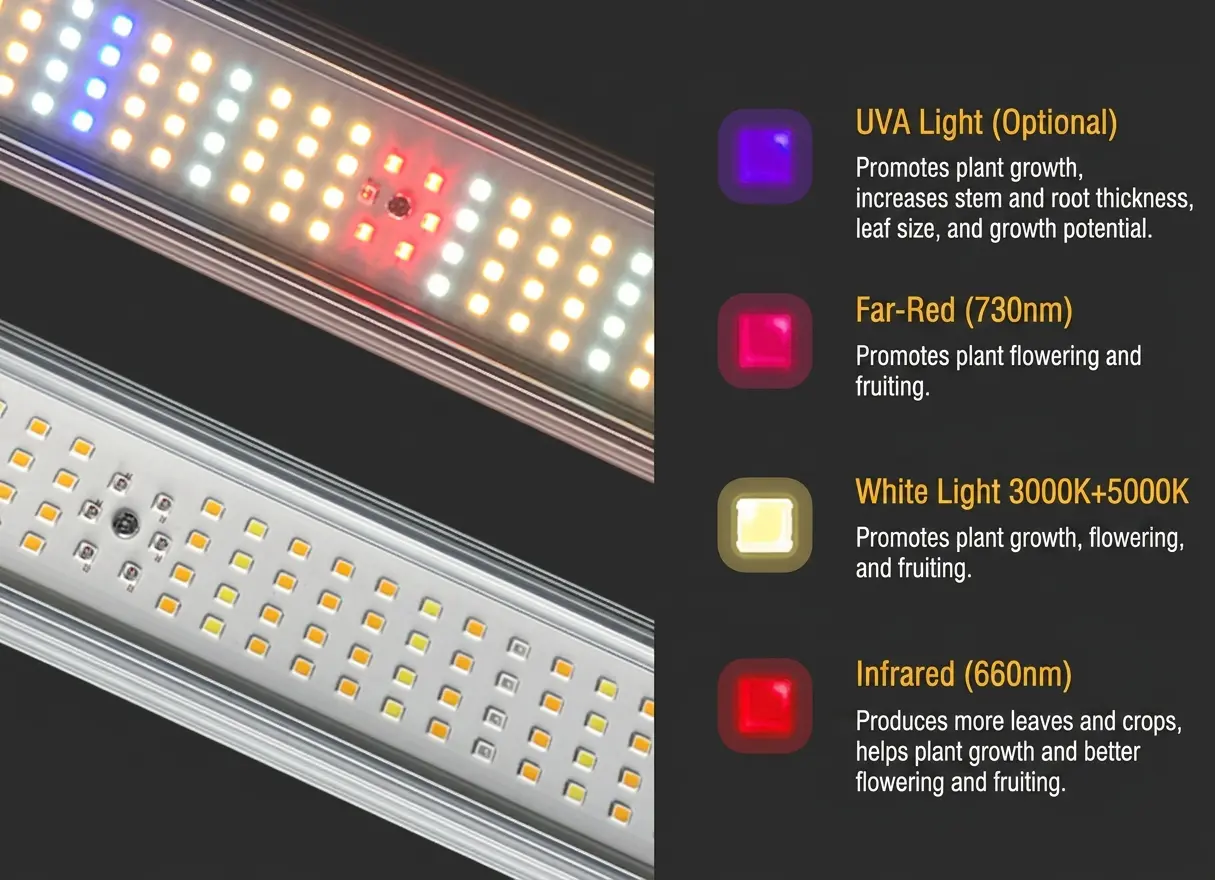

Multi-Band Plant Growth Spectrum: Combines broad-spectrum white with 660nm deep red, 730nm far-red (stimulating the Emerson enhancement effect), and 450nm blue for balanced vegetative node spacing and accelerated flowering.

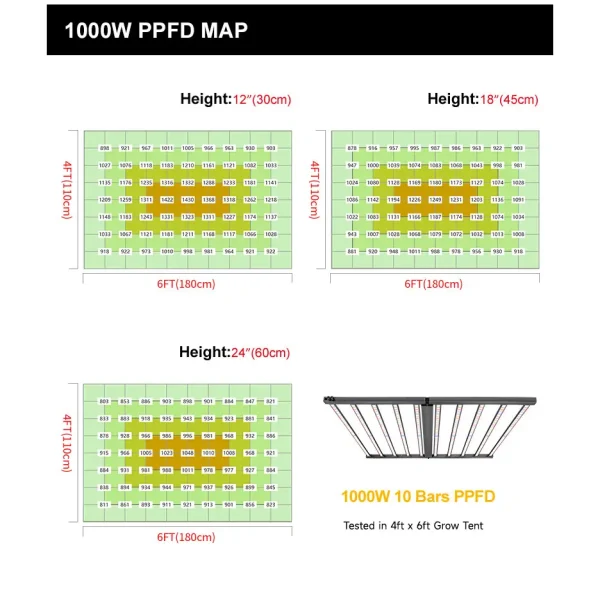

1.8-Meter Rectangular Canopy Distribution: The 1800 mm bar length delivers uniform photon distribution across standard rectangular benches, rolling tables, and grow tents.
Dual-Channel Dimming Flexibility: Independent channel adjustment allows growers to fine-tune vegetative and flowering spectra via local dials, wireless remote, Bluetooth App, or daisy-chained master controllers.
IP65 Ingress Protection: Completely sealed against water spray, condensation, high humidity, and foliar spraying routines.
Passive Silent Cooling: High-conductivity aluminum heat dissipation fins keep operational heat rise below 30K with completely silent, fanless 0 dB operation.
