12V Full Spectrum PCB LED Grow Light (1/2/3/4-Board)

12V Full Spectrum PCB LED Grow Light System for Indoor Plant Stands & Cabinets (1-Board to 4-Board Combinations, Inline Timer, 3000K/6500K/630nm Red)

Modular 1-to-4 PCB Board Expansion: Flexible wiring harness powers 1, 2, 3, or 4 PCB light boards from a single 12V adapter.
Targeted Plant Spectrum: 3000K warm white, 6500K cool white, and 630nm deep red for balanced vegetative growth and flowering.
High-Efficiency PCB Board: Delivers 700 lm luminous flux per board and >=2.0 umol/J efficacy with 258–540 LED chips.
Safe 12V Low Voltage: Powered via included 12V DC power adapter with universal plug options (US, EU, UK, AU, CN).

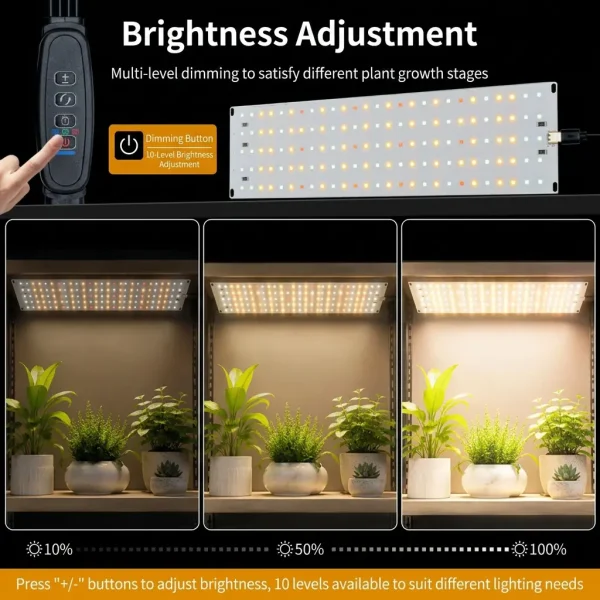

Inline Control & Auto-Timer: Integrated cable controller provides easy on/off switching, dimming levels, and automatic timing cycles.
Ultra-Slim Profile: 300 x 80 mm compact aluminum PCB board fits neatly under plant shelves, inside plant cabinets, and across seedling racks.

Product Overview

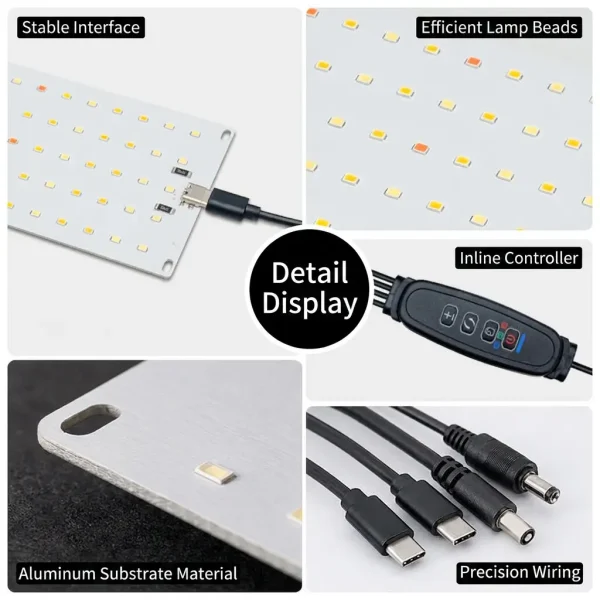

This 12V Full Spectrum PCB LED Grow Light System is a compact, modular lighting solution designed specifically for indoor houseplants, succulent collections, plant cabinets, bookshelf gardens, and propagation trays. Engineered on a slim 300 x 80 mm high-thermal-conductivity aluminum PCB board, each unit integrates 258 to 540 high-efficiency diodes (Samsung, Osram, Sanan, or Epistar options) delivering a photosynthetic spectrum of 3000K warm white, 6500K cool white, and 630nm deep red.

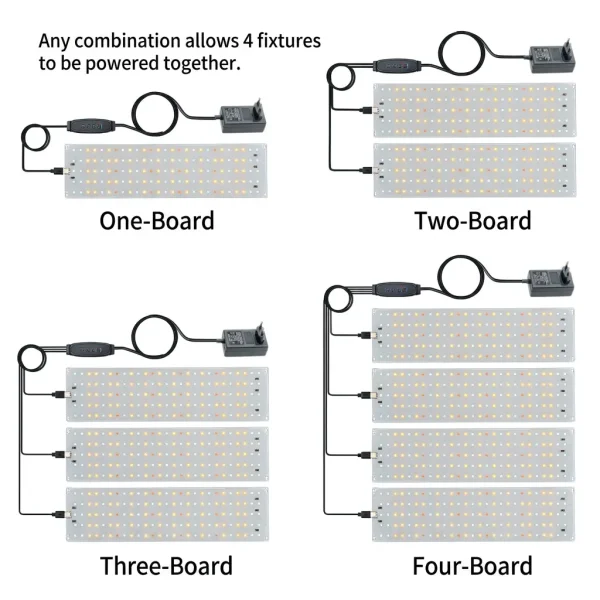

Equipped with a multi-output connector cable and an inline timer controller, the system allows flexible deployment of 1-board, 2-board, 3-board, or 4-board configurations running from a single 12V power supply. The fanless, low-voltage design ensures safe, quiet, and reliable operation directly above plant canopies.

Technical Specifications

Parameter / Specification	Value / Technical Detail
Product Type	12V Aluminum PCB LED Grow Light, 5V is available
System Configurations	1-Board / 2-Board / 3-Board / 4-Board Kits (Up to 4 Boards per Adapter)
Input Voltage	12V DC (Universal AC 100-240V Adapter Included)
Connection Method	Multi-Branch Splitter Cable + Inline Controller
Available Plug Types	US, EU, UK, AU, CN Power Plugs
Luminous Flux	700 lm per PCB board
Photon Efficacy	>= 2.0 umol/J
Power Factor (PF)	>= 0.95
LED Chip Quantity	258 – 540 pcs per board
LED Diode Options	Samsung / Osram / Sanan / Luminus / Epistar
Light Spectrum / CCT	Full Spectrum (3000K Warm White + 6500K Cool White + 630nm Deep Red)
Control Method	Inline Cable Controller (Switch, Dimmer & Cycle Timer)
Single PCB Board Dimensions	300 x 80 mm (11.8 x 3.15 in)
Packaging Box Dimensions	320 x 85 x 65 mm (32 x 8.5 x 6.5 cm)
System Net Weight	1-Board: 350 g / 2-Board: 420 g / 3-Board: ~480 g / 4-Board: ~550 g
Ingress Protection Rating	IP42 (Indoor Dust & Humidity Resistant)
Thermal Performance (Temp Rise)	20 K – 60 K (Passive Aluminum PCB Heat Dissipation)
Lifespan Rating	50,000 Hours
Certifications	CE Certified

Key Applications & Features

Customizable Multi-Tier Layouts: The 1-to-4 board modular system simplifies shelf wiring by powering up to 4 separate shelves or growing levels with just one wall outlet.
Targeted Horticultural Spectrum: 3000K provides warm light for stem and foliage strength, 6500K simulates midday light to keep internodes compact, and 630nm red fuels active photosynthesis.
Direct Shelf Mounting: The ultra-slim 300 mm aluminum PCB profile attaches easily using double-sided tape, zip ties, or mounting clips underneath shelves and cabinets.
Passive Silent Thermal Control: The aluminum PCB substrate acts directly as the heat sink, dissipating warmth passively with 0 dB zero noise and low thermal impact on plants.
